1. WHAT IS TECH2WIN?

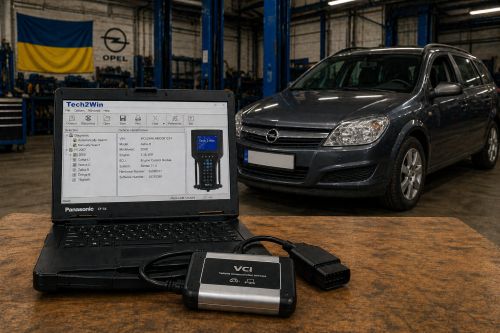

Tech2Win is a software emulator for the GM Tech 2 diagnostic scanner that runs on Windows.
It fully replicates the interface and functions of the original handheld device, which has been the primary tool for General Motors dealers for decades.
Key features:
- Reading and clearing trouble codes (DTCs).
- Viewing real-time system parameters (Data Stream).
- Performing actuator tests.
- Calibration and service programming of electronic control units.
The program requires a J2534-standard diagnostic interface (e.g., GM MDI, MDI 2, VNCI, VXDIAG, etc.).
2. WHY ARE .BIN FILES NEEDED IN TECH2WIN?
In the original Tech 2 device, data for specific car brands was stored on removable PCMCIA memory cards (32 MB). The Tech2Win program emulates this process using digital images—.bin files.
The role of .bin files:
- Selecting a make and market: Each card contains software for a specific group of vehicles. There are separate images for Opel/Vauxhall, GM North American Operations (Chevrolet, Cadillac, GMC, Buick), Saab, Suzuki, Holden, and Isuzu.
- Protocol database: Without a .bin file, the program is “empty.” The image contains instructions on exactly how the emulator should communicate with the control modules of a specific model and model year.
- Localization (Language): .bin files determine the interface language. For example, there are specific versions of the files for Opel with Russian language support.
- Software Version: New .bin files were released as new car models came out. For example, the Opel image version 180.000 supports models up to ~2014.
3. CONCLUSION
Tech2Win turns your laptop into a dealership scanner, and .bin files are virtual cartridges that switch this scanner between different GM brands and regions.
Files included:
Cadillac 117.500
Cadillac BLS 120.000
Cadillac BLS ESP SPS
Chevrolet YGM 23.002
Chevrolet YGM
China-1 29.002
China2
GM 32.008
GM 33.003
GM Brasil 156.100 1998-2014
GM Ford Chrysler Saturn Jeep 0101.06 1981-1997
GM NAO 33.008
Holden 132
Holden 157 1997-2012
Holden Export 149
Initial Software 15.1
Isuzu 11.540 Ru
Isuzu 107.021
Isuzu NAO (GM Based) 28.003
Isuzu Truck 11.530 1996-2011
Isuzu Truck CAN 122.050
North American Operations
Opel 152 Ru
Opel GT Chevrolet HHR 33.004
Opel Vauxhall 130.001 Ru
Opel Vauxhall NAO 166
Opel Vauxhall 187
QuickStart
Saab 140.5 1998-2012 Ru
Saab 148 1998-2012
Saab NAO 9.250
Saab TIS 43
Saturn Astra 31.001
Suzuki 01.240.022 1996-2008
Suzuki 29.003
Suzuki 262
Toyota 21
Need it? Push button Thanks, PM for pass | or by email right now.
